Type:

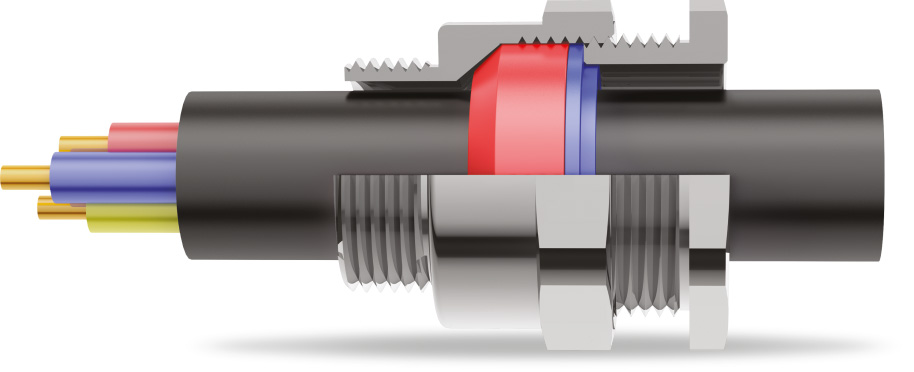

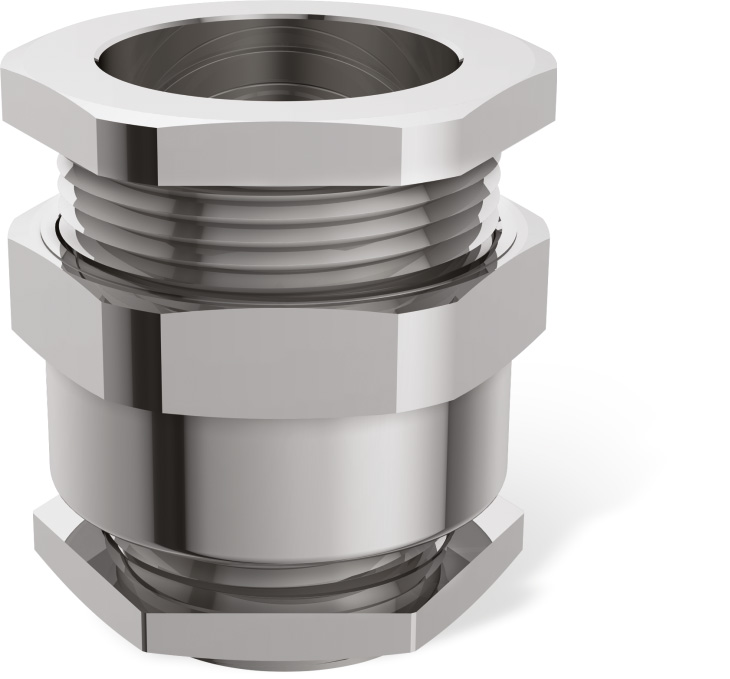

A1A2 Single Compression Cable Gland
Cable Types:
Unarmoured
Application:
For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 protection on the outer sheath of cable for circular, unarmoured plastic or rubber sheathed cables.
Standard:
BS6121: Part 1: 2005. EN50262
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L)
IP Rating:
IP66
Seal Type:
Displacement Type
Operating Temperature:
Standard seals (Nitrile): -20C TO 80C. On request (Silicone) : -50C To +160C
Finish:
Natural Brass or Nickel Plated
Accessories:
PVC Shroud, LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
Size-Chart

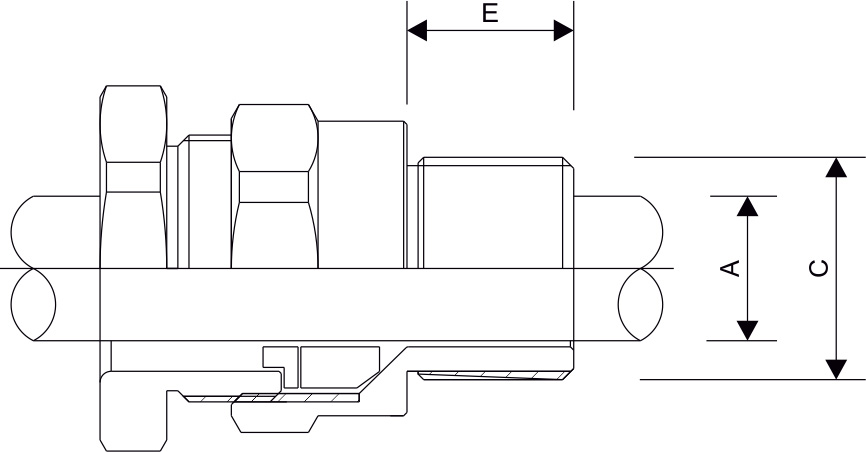

| CODE | CABLE GLAND SIZE | Available Entry Thread C (Alternate Metric Thared Lengths Available) Standard > Metric NPT | Available Entry Thread C (Alternate Metric Thared Lengths Available) Standard > Thread Length E | Cable Diameter A > Min | Cable Diameter A > Max | Hexagon Size > Across Flat > Max | Hexagon Size > Across Corner > Max |
|---|---|---|---|---|---|---|---|
| MM-A1A2-20S | 20S | M20x1.5 1/2 | 10 | 8.00 | 12.00 | 22.00 | 25.00 |
| MM-A1A2-20L | 20L | M20x1.5 1/2 | 10 | 10.50 | 14.00 | 27.00 | 30.00 |
| MM-A1A2-25S | 25S | M25x1.5 3/4 | 10 | 11.50 | 16.50 | 31.00 | 35.00 |
| MM-A1A2-25L | 25L | M25x1.5 3/4 | 10 | 15.00 | 20.50 | 35.00 | 38.50 |
| MM-A1A2-32 | 32L | M32x1.5 1 | 10 | 19.50 | 26.50 | 42.00 | 46.00 |
| MM-A1A2-40 | 40L | M40x1.5 1.1/4 | 15 | 26.00 | 33.00 | 50.00 | 55.00 |
| MM-A1A2-50S | 50S | M50x1.5 1.1/2 | 15 | 32.00 | 39.50 | 55.00 | 59.00 |
| MM-A1A2-50L | 50L | M50x1.5 2 | 15 | 37.00 | 44.50 | 62.00 | 68.00 |
| MM-A1A2-63S | 63S | M63x1.5 2 | 15 | 42.00 | 49.50 | 70.00 | 79.00 |
| MM-A1A2-63L | 63L | M63x1.5 2.1/2 | 15 | 48.00 | 56.50 | 75.00 | 82.00 |
| MM-A1A2-75S | 75S | M75x1.5 2.1/2 | 15 | 53.20 | 61.70 | 80.00 | 86.00 |
| MM-A1A2-75L | 75L | M75x1.5 3 | 15 | 59.50 | 68.00 | 85.00 | 95.00 |
| MM-A1A2-90 | 90 | M90x2 3 | 20 | 67.00 | 78.00 | 108.00 | 118.00 |
| MM-A1A2-100 | 100 | M100x2 3.1/2 | 20 | 76.50 | 90.00 | 120.00 | 130.00 |
