Type:

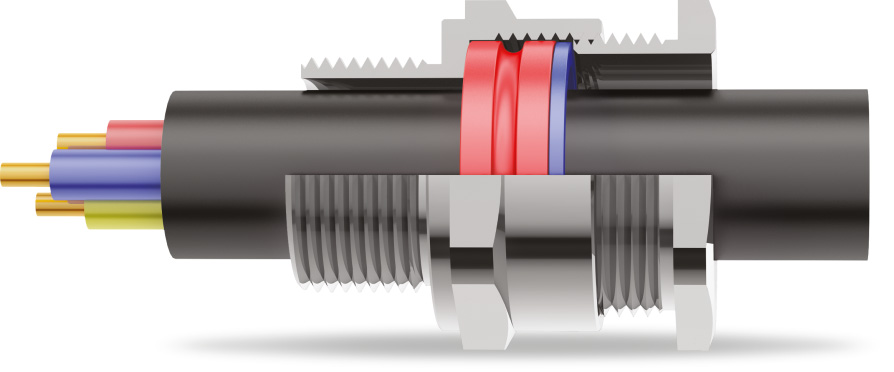

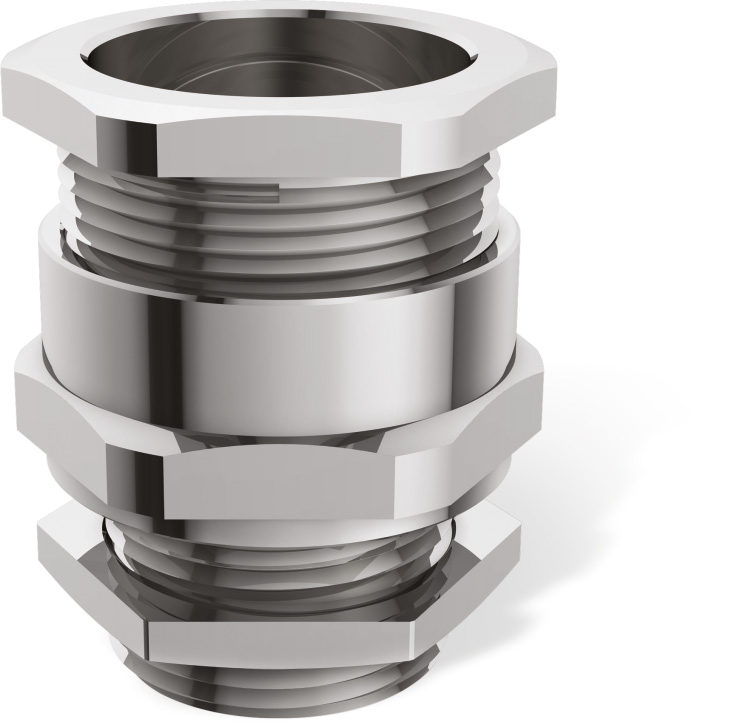

A2 Type Single Compression Gland
Cable Types:
Unarmoured
Application:
Brass gland for indoor and outdoor use with all types of unarmoured cable where it is essential to Provide IP-66 protection on the outer sheath of cable
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread:
Metric, NPT, BSP & PG
IP Rating:
IP66
Seal Type:
Weakback type
Operating Temperature:
Standard Seals (Nitrile): -20C To 80C. on Request (Silicone) : – 60C to +180C
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC / LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer

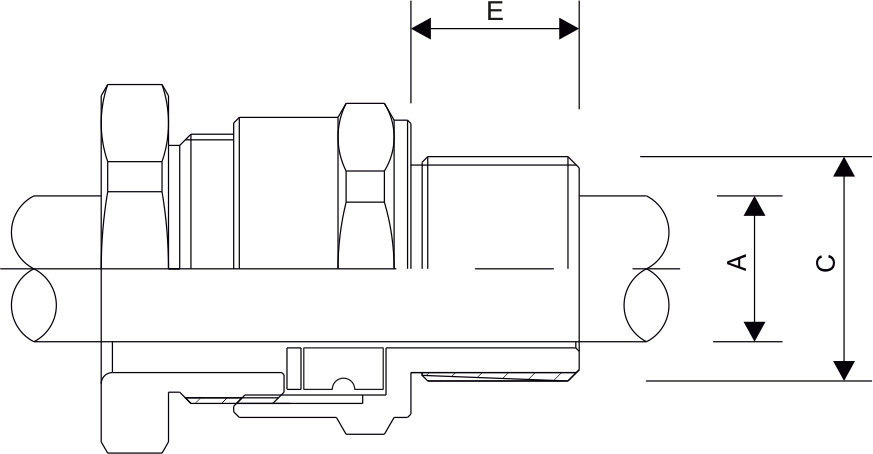

Size-Chart
| CODE | GLAND SIZE | THREAD SIZE C > METRIC (ISO) | THREAD SIZE C > NPT | THREAD LENGTH E | CABLE DIAMETER A > MIN | CABLE DIAMETER A > MAX |
|---|---|---|---|---|---|---|
| MM-A2-20S | 20S | M20 | 1/2 | 15 | 8.00 | 11.50 |
| MM-A2-20L | 20L | M20 | 1/2 | 15 | 11.00 | 13.50 |
| MM-A2-25S | 25S | M25 | 3/4′ | 15 | 13.00 | 16.50 |
| MM-A2-25L | 25L | M25 | 3/4′ | 15 | 16.00 | 19.50 |
| MM-A2-32L | 32L | M32 | 1 | 15 | 24.00 | 27.00 |
| MM-A2-40S | 40S | M40 | 1.1/4 | 20 | 26.00 | 29.00 |
| MM-A2-40L | 40L | M40 | 1.1/4 | 20 | 30.50 | 34.00 |
| MM-A2-50S | 50S | M50 | 1.1/2 | 20 | 33.00 | 38.00 |
| MM-A2-50L | 50L | M50 | 2 | 20 | 38.00 | 44.00 |
| MM-A2-63S | 63S | M63 | 2 | 20 | 44.00 | 50.00 |
| MM-A2-63L | 63L | M63 | 2.1/2 | 20 | 49.50 | 55.00 |
| MM-A2-75S | 75S | M75 | 2.1/2 | 20 | 54.50 | 61.00 |
| MM-A2-75L | 75L | M75 | 3 | 20 | 62.00 | 68.00 |
| MM-A2-90L | 90L | M90 | 3 | 20 | 70.00 | 80.00 |
| MM-A2-100L | 100L | M100 | 3.1/2 | 25 | 82.00 | 90.00 |
