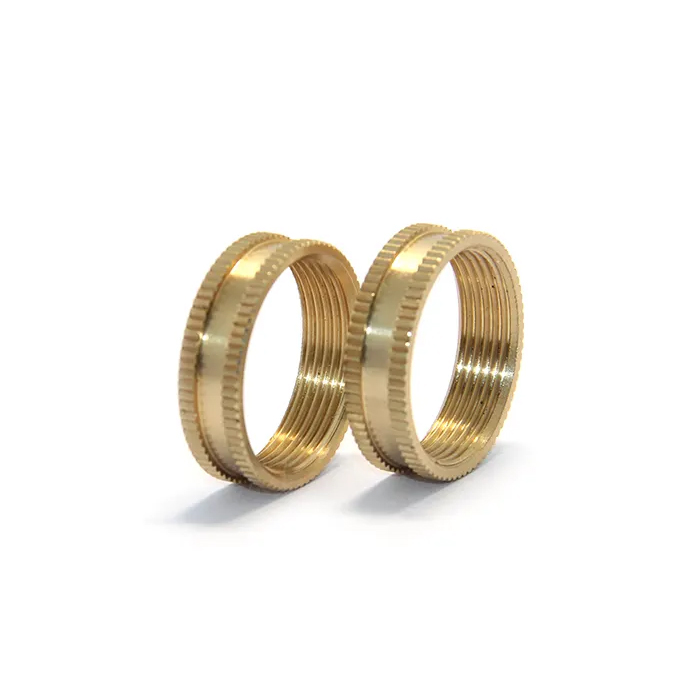

Size-Chart
| External Thread | Internal Thread | ROD Size SW | Total Length | Thread Length |
|---|---|---|---|---|
| M 16 | M 12 | 18.00 | 7.50 | 5.00 |
| M 20 | M 12 | 22.00 | 9.00 | 6.00 |
| M 20 | M 16 | 22.00 | 9.00 | 6.00 |
| M 25 | M 16 | 27.00 | 10.00 | 7.00 |
| M 25 | M 20 | 27.00 | 10.00 | 7.00 |
| M 32 | M 20 | 34.00 | 11.00 | 8.00 |
| M 32 | M 25 | 34.00 | 11.00 | 8.00 |
| M 40 | M 25 | 43.00 | 11.50 | 8.00 |
| M 40 | M 32 | 43.00 | 11.50 | 8.00 |
| M 50 | M 32 | 53.00 | 12.50 | 9.00 |
| M 50 | M 40 | 53.00 | 12.50 | 9.00 |
| M 63 | M 40 | 70.00 | 14.00 | 10.00 |
| M 63 | M 50 | 70.00 | 14.00 | 10.00 |
| M 16 | PG 07 | 18.00 | 7.50 | 5.00 |
| M 20 | PG 09 | 22.00 | 9.00 | 6.00 |
| M 25 | PG 09 | 27.00 | 10.00 | 7.00 |
| M 25 | PG 11 | 27.00 | 10.00 | 7.00 |
| M 25 | PG 13 | 27.00 | 10.00 | 7.00 |
| M 32 | PG 13 | 34.00 | 11.00 | 8.00 |
| M 32 | PG 16 | 34.00 | 11.00 | 8.00 |
| M 32 | PG 21 | 34.00 | 11.00 | 8.00 |
| M 40 | PG 16 | 43.00 | 11.50 | 8.00 |
| M 40 | PG 21 | 43.00 | 11.50 | 8.00 |
| M 40 | PG 29 | 43.00 | 11.50 | 8.00 |
| M 50 | PG 21 | 53.00 | 12.50 | 9.00 |
| M 50 | PG 29 | 53.00 | 12.50 | 9.00 |
| M 50 | PG 36 | 53.00 | 12.50 | 9.00 |
| M 63 | PG 29 | 70.00 | 14.00 | 10.00 |
| M 63 | PG 36 | 70.00 | 14.00 | 10.00 |
| M 63 | PG 42 | 70.00 | 14.00 | 10.00 |
| PG 09 | M 12 | 17.00 | 8.50 | 6.00 |
| PG 11 | M 12 | 20.00 | 8.50 | 6.00 |
| PG 11 | M 16 | 20.00 | 8.50 | 6.00 |
| PG 13.5 | M 12 | 22.00 | 9.00 | 6.50 |
| PG 13.5 | M 16 | 22.00 | 9.00 | 6.50 |
| PG 16 | M 16 | 24.00 | 9.50 | 6.50 |
| PG 16 | M 20 | 24.00 | 9.50 | 6.50 |
| PG 21 | M 20 | 30.00 | 10.00 | 7.00 |
| PG 21 | M 25 | 30.00 | 10.00 | 7.00 |
| PG 29 | M 25 | 39.00 | 11.50 | 8.00 |
| PG 29 | M 32 | 39.00 | 11.50 | 8.00 |
| PG 36 | M 32 | 50.00 | 12.50 | 9.00 |
| PG 36 | M 40 | 50.00 | 12.50 | 9.00 |
| PG 42 | M 40 | 57.00 | 14.00 | 10.00 |
| PG 42 | M 50 | 57.00 | 14.00 | 10.00 |
| PG 48 | M 50 | 64.00 | 14.00 | 10.00 |
| PG 09 | PG 07 | 17.00 | 8.50 | 6.00 |
| PG 11 | PG 07 | 20.00 | 8.50 | 6.00 |
| PG 11 | PG 09 | 20.00 | 8.50 | 6.00 |
| PG 13.5 | PG 07 | 22.00 | 9.00 | 6.50 |
| PG 13.5 | PG 09 | 22.00 | 9.00 | 6.50 |
| PG 13.5 | PG 11 | 22.00 | 9.00 | 6.50 |
| PG 16 | PG 07 | 24.00 | 9.50 | 6.50 |
| PG 16 | PG 09 | 24.00 | 9.50 | 6.50 |
| PG 16 | PG 11 | 24.00 | 9.50 | 6.50 |
| PG 16 | PG 13 | 24.00 | 9.50 | 6.50 |
| PG 21 | PG 11 | 30.00 | 10.00 | 7.00 |
| PG 21 | PG 13 | 30.00 | 10.00 | 7.00 |
| PG 21 | PG 16 | 30.00 | 10.00 | 7.00 |
| PG 29 | PG 16 | 39.00 | 11.50 | 8.00 |
| PG 29 | PG 21 | 39.00 | 11.50 | 8.00 |
| PG 36 | PG 21 | 50.00 | 12.50 | 9.00 |
| PG 36 | PG 29 | 50.00 | 12.50 | 9.00 |
| PG 42 | PG 29 | 57.00 | 14.00 | 10.00 |
| PG 42 | PG 36 | 57.00 | 14.00 | 10.00 |
| PG 48 | PG 36 | 64.00 | 14.00 | 10.00 |
| PG 48 | PG 42 | 64.00 | 14.00 | 10.00 |
