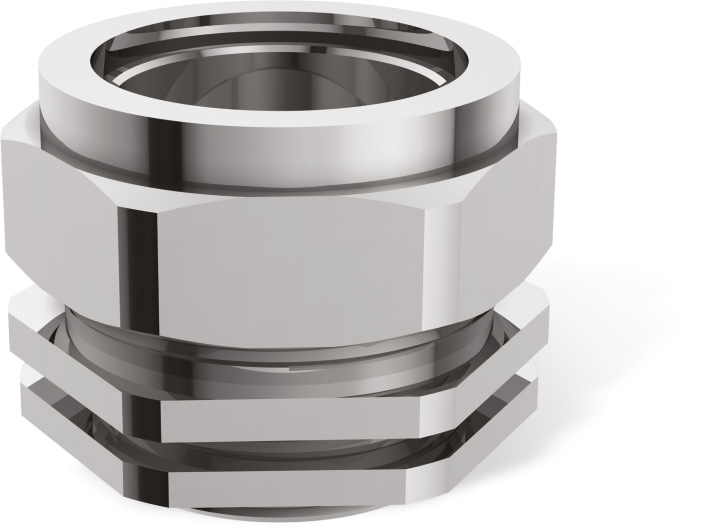

BW Cable Gland - 2PT Armoured
Type:
BW 2PT Armoured Cable Gland
Gland Types:
Steel Wire Armour (SWA) Aluminium Wire Armour (AWA)
Application:
BW Brass Cable Gland for dry indoor use with SWA cables. No loose parts allows easy installation. Two Part Armour Lock
BW Gland Material:
Brass (CuZn39Pb3) and Stainless Steel (304 or 316L)
IP Rating:
IP30
Operating Temperature:
-80C to + 600C
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC Shrouds, Lock Nut, Earth Tag
Size-Chart
| CODE | GLAND SIZE | THREAD SIZE C | THREAD LENGTH E | A/F | CABLE RANGE > RANGE A | CABLE RANGE > RANGE B |
|---|---|---|---|---|---|---|
| MM-BW220S | 20S | M20 | 10 | 21.00 | 11.50 | 15.50 |
| MM-BW220L | 20L | M20 | 10 | 22.50 | 14.00 | 20.50 |
| MM-BW225L | 25L | M25 | 10 | 32.50 | 20.00 | 27.20 |
| MM-BW232L | 32L | M32 | 10 | 41.00 | 26.30 | 33.50 |
| MM-BW240L | 40L | M40 | 15 | 49.00 | 32.00 | 40.00 |
| MM-BW250S | 50S | M50 | 15 | 55.00 | 38.20 | 46.30 |
| MM-BW250L | 50L | M50 | 15 | 62.00 | 44.00 | 52.60 |
| MM-BW263S | 63S | M63 | 15 | 66.50 | 50.10 | 59.00 |
| MM-BW263L | 63L | M63 | 15 | 76.00 | 56.00 | 65.30 |
| MM-BW275S | 75S | M75 | 15 | 86.50 | 62.00 | 71.60 |
| MM-BW275L | 75L | M75 | 15 | 91.50 | 68.00 | 78.00 |
| MM-BW290L | 90L | M90 | 20 | 104.50 | 80.50 | 91.00 |
