BWR Cable Glands
Type:

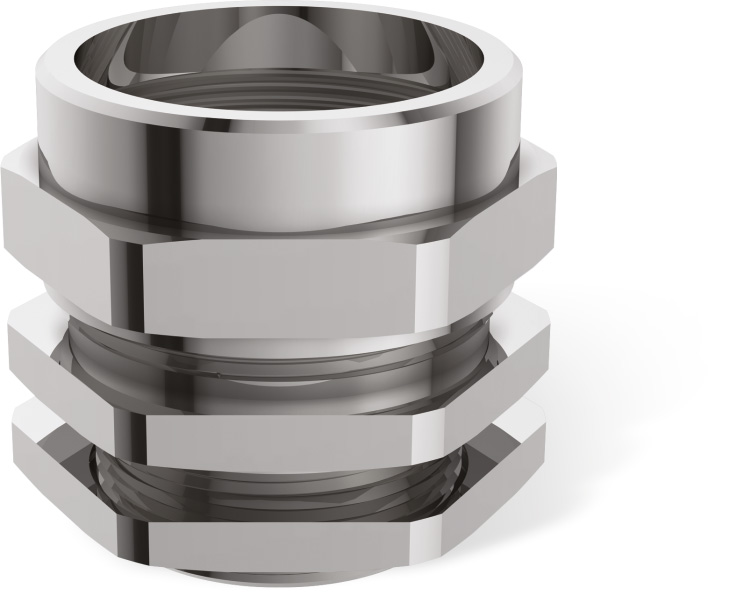

BWR Armoured Cable Gland
Cable Types:
Steel Wire Armour (SWA) Aluminium Wire Armour (AWA)
Application:
Brass Gland for dry indoor use with SWA cables. No loose parts, allows easy installation.
Gland Material:
Brass (CuZn39Pb3)
IP Rating:
IP30
Operating Temperature:
-80C to + 600C
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC Shrouds, Lock Nut, Earth Tag
Size-Chart
| CODE | GLAND SIZE | THREAD SIZE METRIC C | THREAD LENGTH E | ACROSS FLAT | CABLE RANGE A | CABLE RANGE B |
|---|---|---|---|---|---|---|
| MM-BWR-20S | 20S | M20 | 10 | 22.00 | 11.50 | 16.00 |
| MM-BWR-20L | 20L | M20 | 10 | 27.00 | 14.00 | 21.20 |
| MM-BWR-25 | 25 | M25 | 10 | 35.00 | 20.00 | 27.00 |
| MM-BWR-32 | 32 | M32 | 10 | 41.00 | 26.20 | 33.50 |
| MM-BWR-40 | 40 | M40 | 15 | 51.50 | 32.50 | 40.00 |
| MM-BWR-50 | 50 | M50 | 15 | 64.50 | 44.40 | 52.50 |
| MM-BWR-63 | 63 | M63 | 15 | 80.00 | 55.40 | 65.50 |
| MM-BWR-75 | 75 | M75 | 15 | 94.50 | 69.50 | 79.00 |
