Description:

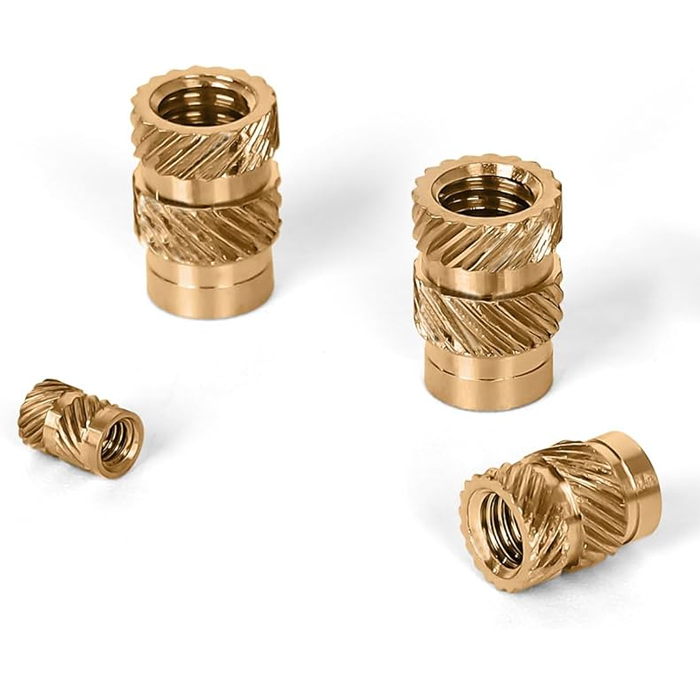

These Cross Knurled Inserts Knurled Brass Inserts are double ended, so it helps to increased pull out and torque performance. They are self-aligning and hence aid installation process.
Materials:
Brass to BS 2874 / 2872
Finish:
Brass natural, Electro-Tinned, Nickel etc.
Size:
2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, M2, M3, M4, M5, M6, M8, M10, M12.
Thread:
ISO Metric, BSW, BA, BSF, UNC, UNF UNEF etc. 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 32mm, 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1”, 11/8”, 11/4”, 11/2”, 13/4”, 2”.
Special Features:
{'Standards': 'Threads are as per International Go and Not Go Standards', 'Grooved': 'Deeply Grooved for maximum Pull Out Resistance', 'Diameter': 'Inner Diameter (I/D) after Threads with very close tolerance to prevent from unnecessary flush to enter into the inserts.', 'Knurling': 'Diamond, Straight, Unidirectional'}
