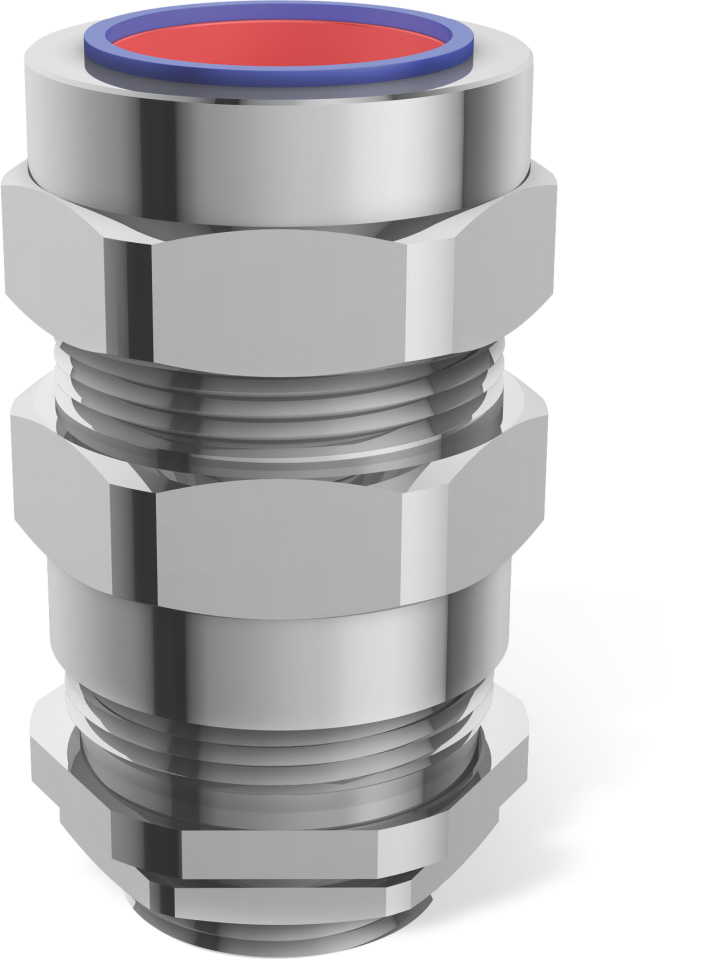

CW Cable Gland - 4PT Single Compression
Type:
CW 4PT Single Compression Cable Gland
Cable Types:
SWA (Single Wire Armoured Cables) , AWA (Aluminium Wire Armoured Cables)
Application:
CW Brass Cable Glands for use with all types of SWA cable.
IP Rating:
IP66
Option Thread:
Metric, NPT, BSP & PG
CW Gland Material:
Brass (CuZn39Pb3)
Sealing Type:
Weakback Sealing
Operating Temperature:
(Nitrile): NBR -20C to +80C
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC Shroud, LSF Shroud, Lock Nut, Earth Tag, Serrated Washer
Size-Chart
| CODE | GLAND SIZE | THREAD SIZE METRIC C | THREAD SIZE NPT C | THREAD LENGTH METRIC E | CABLE RANGE A > MIN | CABLE RANGE A > MAX |
|---|---|---|---|---|---|---|
| MM-CW420S | 20S | M20 | 1/2 | 10 | 11.50 | 15.50 |
| MM-CW420L | 20L | M20 | 1/2 | 10 | 14.00 | 20.50 |
| MM-CW425S | 25S | M25 | 3/4′ | 10 | 18.00 | 24.00 |
| MM-CW425L | 25L | M25 | 3/4′ | 10 | 20.00 | 27.20 |
| MM-CW432 | 32 | M32 | 1 | 10 | 26.30 | 33.50 |
| MM-CW440 | 40 | M40 | 1.1/4 | 15 | 32.00 | 40.00 |
| MM-CW450S | 50S | M50 | 1.1/2 | 15 | 38.20 | 46.30 |
| MM-CW450L | 50L | M50 | 1.1/2 | 15 | 44.00 | 52.60 |
| MM-CW463S | 63S | M63 | 2 | 15 | 50.10 | 59.00 |
| MM-CW463L | 63L | M63 | 2 | 15 | 56.00 | 65.30 |
| MM-CW475S | 75S | M75 | 21.2 | 15 | 62.00 | 71.60 |
| MM-CW475L | 75L | M75 | 21.2 | 15 | 68.00 | 78.00 |
| MM-CW490 | 90 | M90 | 3 | 20 | 80.50 | 91.00 |
