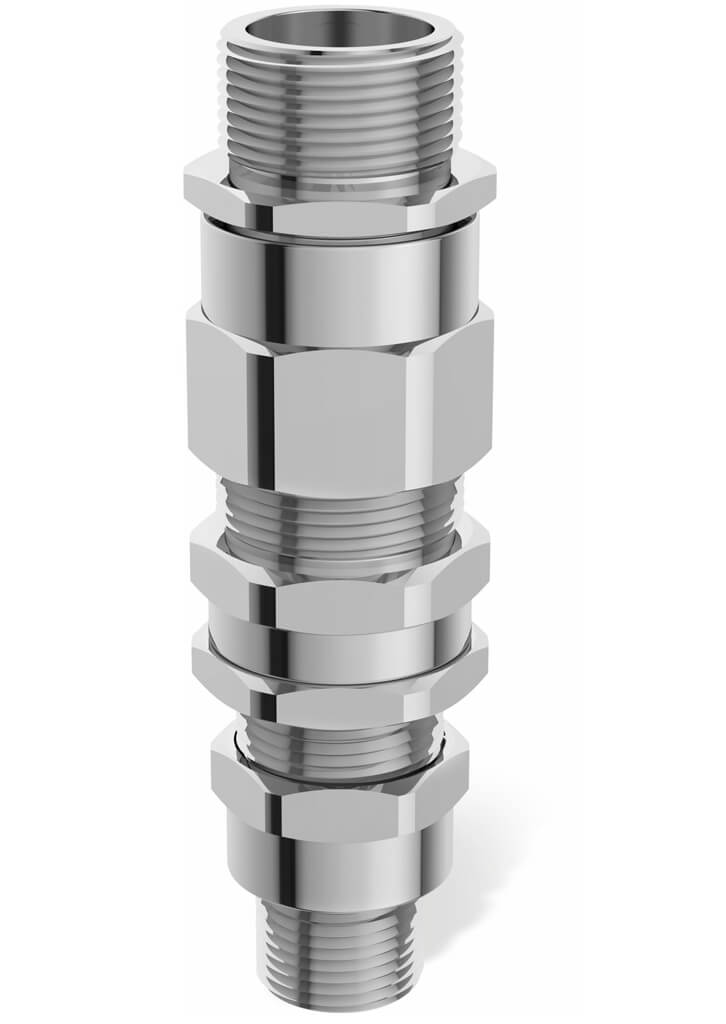

E1FPM Type Double Compression
Type:
E1FPM Double Compression Cable Gland.
Cable Types:
For all types of IEC Armoured Cables.
Application:
E1FPM cable glands for armoured cables in Rigid Conduits & Metal Pipes. Male thread on the outlet gives the possibility to connect Pipes and Hoses. It is easy to use and install as it has free rotating Bush for Connection.
Option Thread:
Metric, NPT
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L)
IP Rating:
IP66, IP67 & IP68
Sealing Ring:
Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature:
Silicone Seals : EAC -60⁰C ≤ Ta ≤ +130⁰C
Finish:
Natural Brass or Nickel Plated.
Accessories:
PVC Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor/Reducer.
EAC Certificate No.:
RU C-IN.AA71.B.00212/20
Protection Type:
1Ex e IIC Gb X / 1Ex d IIC Gb X / 2Ex nR IIC Gc X / Ex ta IIIC Da X
Size-Chart
| CODE | CABLE GLAND SIZE | ENTRY THREAD C > METRIC | ENTRY THREAD C > NPT | THREAD LENGTH E > METRIC | THREAD LENGTH E > NPT | CABLE BEDDING DIAMETER A > MIN | CABLE BEDDING DIAMETER A > MAX | OVERALL CABLE DIAMETER B > MIN | OVERALL CABLE DIAMETER B > MAX | ARMOUR RANGE > GROOVED CONE (X) > MIN | ARMOUR RANGE > GROOVED CONE (X) > MAX | ARMOUR RANGE > STEPPED CONE (W) > MIN | ARMOUR RANGE > STEPPED CONE (W) > MAX | M > MAX | N > MAX | MALE CONNECTION THREAD D > METRIC | MALE CONNECTION THREAD D > NPT | MALE CONNECTION THREAD D > BSP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM-EX-E1FPM-20S16 | 20S16 | M20 | 1/2 | 17 | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | M20 | 1/2 | 1/2 |
| MM-EX-E1FPM-20S | 20S | M20 | 1/2 | 17 | 20 | 6.2 | 11.6 | 9.6 | 14.9 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 | M20 | 1/2 | 1/2 |
| MM-EX-E1FPM-20 | 20 | M20 | 1/2 | 17 | 20 | 8.0 | 13.9 | 12.5 | 14.9 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 | M20 | 1/2 | 1/2 |
| MM-EX-E1FPM-20L | 20 | M20 | 1/2 | 17 | 20 | 8.0 | 13.9 | 12.5 | 19.9 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 | M25 | 3/4 | 3/4 |
| MM-EX-E1FPM-25S | 25S | M25 | 3/4 | 17 | 21 | 11.2 | 19.6 | 14.0 | 19.9 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | M25 | 3/4 | 3/4 |
| MM-EX-E1FPM-25 | 25 | M25 | 3/4 | 17 | 21 | 11.2 | 19.6 | 18.3 | 25.6 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 | M32 | 1 | 1 |
| MM-EX-E1FPM-32 | 32 | M32 | 1 | 17 | 26 | 17.1 | 26.0 | 23.7 | 33.4 | 0.4 | 1.2 | 1.6 | 2 | 46 | 51 | M40 | 11/4 | 11/4 |
| MM-EX-E1FPM-40 | 40 | M40 | 11/4 | 17 | 26 | 22.1 | 31.6 | 28.0 | 39.5 | 0.4 | 1.6 | 1.6 | 2 | 55 | 60 | M50 | 11/2 | 11/2 |
| MM-EX-E1FPM-50S | 50S | M50 | 11/2 | 17 | 26 | 29.5 | 37.5 | 35.2 | 39.5 | 0.4 | 1.6 | 2 | 2.5 | 61 | 66.5 | M50 | 11/2 | 11/2 |
| MM-EX-E1FPM-50 | 50 | M50 | 2 | 17 | 27 | 35.6 | 43.1 | 40.5 | 49.5 | 0.6 | 1.6 | 2 | 2.5 | 70 | 76 | M63 | 2 | 2 |
| MM-EX-E1FPM-63S | 63S | M63 | 2 | 17 | 27 | 40.1 | 48.7 | 45.6 | 49.5 | 0.6 | 1.6 | 2 | 2.5 | 75 | 83 | M63 | 2 | 2 |
| MM-EX-E1FPM-63 | 63 | M63 | 21/2 | 17 | 40 | 47.2 | 55.2 | 54.6 | 64.5 | 0.6 | 1.6 | 2 | 2.5 | 80 | 89 | M75 | 21/2 | 21/2 |
