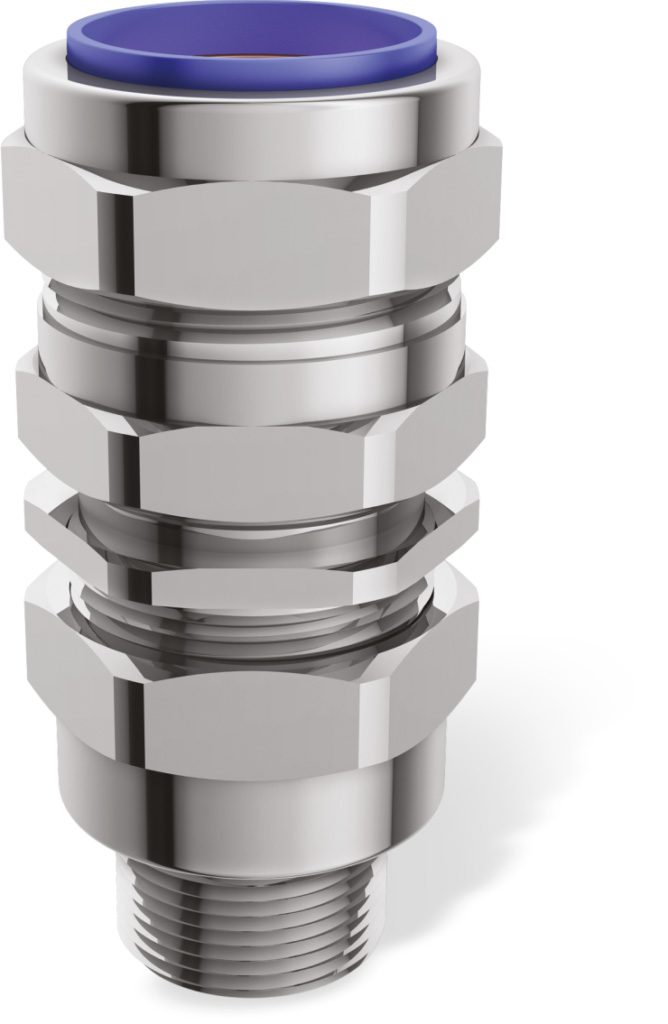

Explosion-Proof Double Compression Cable Gland
Type:
E1FUNV Double Compression Cable Gland
Cable Types:
For all types of IEC armoured cables.
Application:
E1FUNV Double Compression Cable Gland For all types of IEC Armoured Cables Provides a flameproof (Type D) seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible armour cone and clamping ring arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped cone is suitable for SWA cables. Grooved cone is suitable for all other approved armored cables.
Option Thread:
Metric, NPT, BSP, BSPT
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
IP Rating:
IP66 & IP67
Sealing Ring:
Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature:
Standard Seals (Nitrile): -20C To 80C. on Request (Silicone) : – 60C to +180C
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
IECEx Certificate No.:
IECEx PRE 20.0124X
ATEX Certificate No.:
Presafe 20 ATEX 48906X
EAC Certificate No.:
RU C-IN.AA71.B.00212/20
Protection Type:
Ex d, Ex e, Ex t
Size-Chart
| CODE | CABLE GLAND SIZE | ENTRY THREAD C > METRIC | ENTRY THREAD C > NPT | ENTRY THREAD C > OPTIONAL NPT | THREAD LENGTH E > METRIC | THREAD LENGTH E > NPT | CABLE BEDDING DIAMETER A > MIN | CABLE BEDDING DIAMETER A > MAX | OVERALL CABLE DIAMETER B > MIN | OVERALL CABLE DIAMETER B > MAX | ARMOUR RANGE > GROOVED CONE (X) > MIN | ARMOUR RANGE > GROOVED CONE (X) > MAX | ARMOUR RANGE > STEPPED CONE (W) > MIN | ARMOUR RANGE > STEPPED CONE (W) > MAX | M > MAX | N > MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM-EX-E1FUNV-20S16 | 20S16 | M20 | 1/2 | 3/4 | 17 | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 |
| MM-EX-E1FUNV-20S | 20S | M20 | 1/2 | 3/4 | 17 | 20 | 6.2 | 11.6 | 9.6 | 15.5 | 0.3 | 1 | 0.8 | 1.25 | 25 | 27.5 |
| MM-EX-E1FUNV-20 | 20 | M20 | 1/2 | 3/4 | 17 | 20 | 8.0 | 13.9 | 12.5 | 20.9 | 0.4 | 1 | 0.8 | 1.25 | 31 | 34 |
| MM-EX-E1FUNV-25S | 25S | M25 | 3/4 | 1 | 17 | 21 | 11.2 | 19.6 | 14.0 | 21.5 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 |
| MM-EX-E1FUNV-25 | 25 | M25 | 3/4 | 1 | 17 | 21 | 11.2 | 19.6 | 18.3 | 25.6 | 0.4 | 1.2 | 1.25 | 1.6 | 38 | 42 |
| MM-EX-E1FUNV-32 | 32 | M32 | r | 1.1/4 | 17 | 26 | 17.1 | 26 | 23.7 | 33.4 | 0.4 | 1.2 | 1.6 | 2 | 46 | 51 |
| MM-EX-E1FUNV-40 | 40 | M40 | 11/4 | 1.1/2 | 17 | 26 | 22.1 | 31.6 | 28.0 | 39.5 | 0.4 | 1.6 | 1.6 | 2 | 55 | 60 |
| MM-EX-E1FUNV-50S | 50S | M50 | 11/2 | 2 | 17 | 26 | 29.5 | 37.5 | 35.2 | 46.0 | 0.4 | 1.6 | 2 | 2.5 | 61 | 66.5 |
| MM-EX-E1FUNV-50 | 50 | M50 | 2 | 2.1/2 | 17 | 27 | 35.6 | 43.1 | 40.5 | 52.4 | 0.6 | 1.6 | 2 | 2.5 | 70 | 76 |
| MM-EX-E1FUNV-63S | 63S | M63 | 2 | 2.1/2 | 17 | 27 | 40.1 | 48.7 | 45.6 | 58.5 | 0.6 | 1.6 | 2 | 2.5 | 75 | 83 |
| MM-EX-E1FUNV-63 | 63 | M63 | 21/2 | 3 | 17 | 40 | 47.2 | 55.2 | 54.6 | 64.5 | 0.6 | 1.6 | 2 | 2.5 | 80 | 89 |
| MM-EX-E1FUNV-75S | 75S | M75 | 21/2 | 3 | 17 | 40 | 52.8 | 61.2 | 59.0 | 70.4 | 0.6 | 1.6 | 2 | 2.5 | 91 | 98.5 |
| MM-EX-E1FUNV-75 | 75 | M75 | 3 | 3.1/2 | 17 | 42 | 59.1 | 67.2 | 66.7 | 76.3 | 0.6 | 1.6 | 2.5 | 3 | 99.5 | 109 |
| MM-EX-E1FUNV-90 | 90 | M90 | 31/2 | 4 | 24 | 44 | 66.6 | 79.2 | 76.2 | 87.2 | 0.8 | 1.6 | 3.15 | 4 | 114.5 | 124 |
