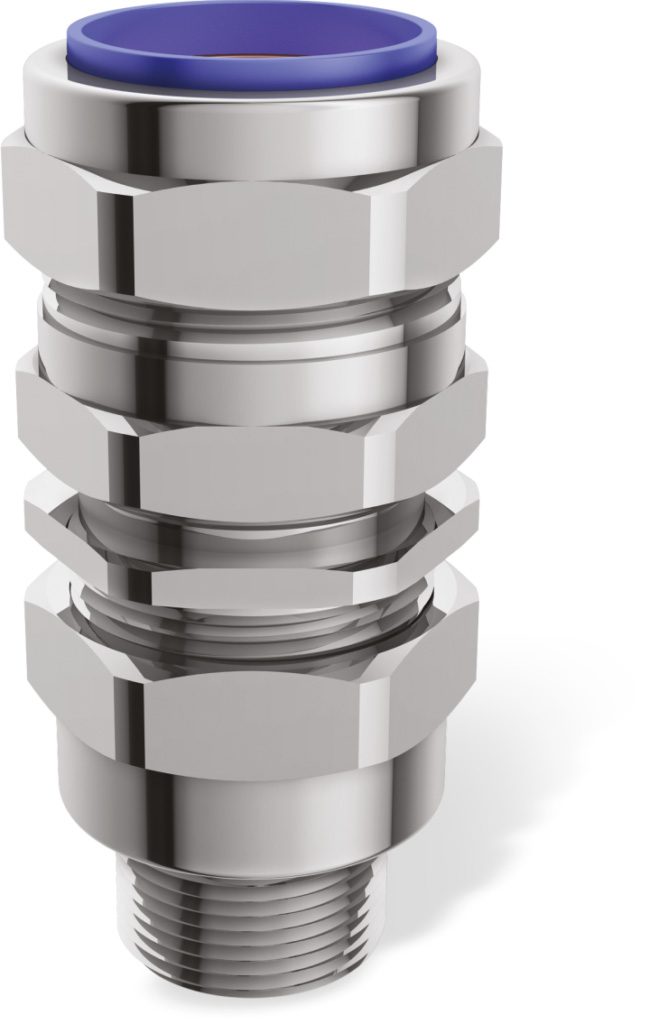

E1FX Type Double Compression Cable Gland
Type:
E1FX Double Compression Cable Gland
Cable Types:
Screened Flexible Wire Braid, Wire Armour (PWA), Steel Tape Armour (STA), Wire Braid Armour, Aluminium Strip Armour (ASA)
Application:
For use with all types Braid, Strip and type armour for indoor and outdoor application. Also it provides IP66 seal on the outer sheath.
Option Thread:
Metric , NPT BSP ,BSPT
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
IP Rating:
IP66 & IP67
Sealing Method:
Double compression sealing (sealing on both outer and inner sheath)
Operating Temperature:
Standard Seals (Nitrile): -20C to 80C.
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
EAC Certificate No.:
RU C-IN.AA71.B.00212/20
Protection Type:
1Ex e IIC Gb X / 1Ex d IIC Gb X /
Size-Chart
| CODE | CABLE GLAND SIZE | ENTRY THREAD C > METRIC | ENTRY THREAD C > NPT | THREAD LENGTH E > METRIC | THREAD LENGTH E > NPT | CABLE BEDDING DIAMETER A > MIN | CABLE BEDDING DIAMETER A > MAX | OVERALL CABLE DIAMETER B > MIN | OVERALL CABLE DIAMETER B > MAX | ARMOUR RANGE > GROOVED CONE (X) > MIN | ARMOUR RANGE > GROOVED CONE (X) > MAX | M > MAX , | N > MAX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM-EX-E1FX-20S16 | 20S16 | M20 | 1/2 | 17 | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.3 | 1 | 25 | 27.5 |
| MM-EX-E1FX-20S | 20S | M20 | 1/2 | 17 | 20 | 6.2 | 11.6 | 9.6 | 15.5 | 0.3 | 1 | 25 | 27.5 |
| MM-EX-E1FX-20 | 20 | M20 | 1/2 | 17 | 20 | 8.0 | 13.9 | 12.5 | 20.9 | 0.4 | 1 | 31 | 34 |
| MM-EX-E1FX-25S | 25S | M25 | 3/4 | 17 | 21 | 11.2 | 19.6 | 14.0 | 21.5 | 0.4 | 1.2 | 38 | 42 |
| MM-EX-E1FX-25 | 25 | M25 | 3/4 | 17 | 21 | 11.2 | 19.6 | 18.3 | 25.6 | 0.4 | 1.2 | 38 | 42 |
| MM-EX-E1FX-32 | 32 | M32 | 1 | 17 | 26 | 17.1 | 26 | 23.7 | 33.4 | 0.4 | 1.2 | 46 | 51 |
| MM-EX-E1FX-40 | 40 | M40 | 11/4 | 17 | 26 | 22.1 | 31.6 | 28.0 | 39.5 | 0.4 | 1.6 | 55 | 60 |
| MM-EX-E1FX-50S | 50S | M50 | 11/2 | 17 | 26 | 29.5 | 37.5 | 35.2 | 46.0 | 0.4 | 1.6 | 61 | 66.5 |
| MM-EX-E1FX-50 | 50 | M50 | 2 | 17 | 27 | 35.6 | 43.1 | 40.5 | 52.4 | 0.6 | 1.6 | 70 | 76 |
| MM-EX-E1FX-63S | 63S | M63 | 2 | 17 | 27 | 40.1 | 48.7 | 45.6 | 58.5 | 0.6 | 1.6 | 75 | 83 |
| MM-EX-E1FX-63 | 63 | M63 | 21/2 | 17 | 40 | 47.2 | 55.2 | 54.6 | 64.5 | 0.6 | 1.6 | 80 | 89 |
| MM-EX-E1FX-75S | 75S | M75 | 21/2 | 17 | 40 | 52.8 | 61.2 | 59.0 | 70.4 | 0.6 | 1.6 | 91 | 98.5 |
| MM-EX-E1FX-75 | 75 | M75 | 3 | 17 | 42 | 59.1 | 67.2 | 66.7 | 76.3 | 0.6 | 1.6 | 99.5 | 109 |
| MM-EX-E1FX-90 | 90 | M90 | 31/2 | 24 | 44 | 66.6 | 79.2 | 76.2 | 87.2 | 0.8 | 1.6 | 114.5 | 124 |
