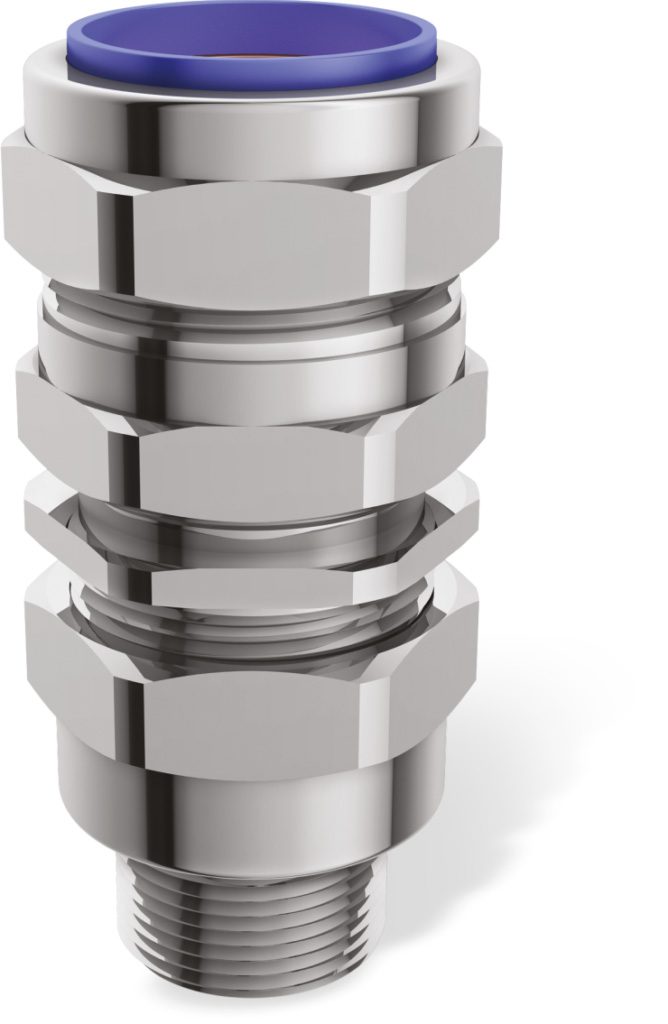

E1W Type Double Compression Heavy Duty Cable Gland.
Type:
E1W Double Compression Heavy Duty Cable Gland
Cable Types:
Steel Wire Armoured (SWA)
Application:
For use with all types of SWA cable for indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath.
Option Thread:
Metric, NPT BSP, BSPT
Gland Material:
Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
IP Rating:
IP66 & IP67
Sealing Method:
Double compression sealing (Sealing on both outer and inner sheath)
Operating Temperature:
Standard seals (Nitrile): -20C to 80C.
Finish:
Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories:
PVC/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
Size-Chart
| CODE | STANDARD > CABLE GLAND SIZE | STANDARD > METRIC | STANDARD > THREAD LENGTH (METRIC) E | STANDARD > NPT | STANDARD > THREAD LENGTH (NPT) E | CABLE DIAMETER A > MIN | CABLE DIAMETER A > MAX | CABLE DIAMETER B > MIN | CABLE DIAMETER B > MAX | ARMOUR RANGE > STEPPED CONE (W) > MIN | ARMOUR RANGE > STEPPED CONE (W) > MAX | A/F > MIN | A/C > MIN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM-E1W-20S16H | 20S16H | M16 | 10 | 3/8″ | 20 | 3.2 | 8.6 | 6.2 | 13.1 | 0.8 | 1.25 | 24.5 | 27 |
| MM-E1W-20SH | 20SH | M20 | 10 | 1/2″ | 20 | 6.2 | 11.5 | 9.6 | 15.9 | 0.8 | 1.25 | 24.5 | 27 |
| MM-E1W-20H | 20H | M20 | 10 | 1/2″ | 20 | 8.0 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 31 | 34 |
| MM-E1W-25SH | 25SH | M25 | 10 | 3/4″ | 20 | 11.2 | 19.9 | 14 | 22 | 1.25 | 1.6 | 38 | 42 |
| MM-E1W-25H | 25H | M25 | 10 | 3/4″ | 20 | 11.2 | 19.9 | 18.3 | 26 | 1.25 | 1.6 | 38 | 42 |
| MM-E1W-32H | 32H | M32 | 10 | 1″ | 22 | 17.1 | 26.3 | 23.7 | 33.9 | 1.6 | 2 | 46 | 51 |
| MM-E1W-40H | 40H | M40 | 15 | 11/4″ | 22 | 22.1 | 32.1 | 28 | 40.3 | 1.6 | 2 | 55 | 60 |
| MM-E1W-50SH | 50H | M50 | 15 | 11/2″ | 22 | 29.5 | 38.1 | 35.2 | 46.7 | 2 | 2.5 | 60 | 66.5 |
| MM-E1W-50H | 50H | M50 | 15 | 2″ | 22 | 35.6 | 44 | 40.5 | 53 | 2 | 2.5 | 70 | 78 |
| MM-E1W-6SH | 63SH | M63 | 15 | 2″ | 29 | 40.1 | 49.9 | 45.6 | 59.4 | 2 | 2.5 | 75 | 83 |
| MM-E1W-63H | 63H | M63 | 15 | 21/2″ | 29 | 47.2 | 56 | 54.6 | 65.8 | 2 | 2.5 | 80 | 89 |
| MM-E1W-75SH | 75SH | M75 | 15 | 21/2″ | 34 | 52.8 | 61.9 | 59 | 72 | 2 | 2.5 | 91 | 98.5 |
| MM-E1W-75H | 75H | M75 | 15 | 3″ | 34 | 59.1 | 68 | 66.7 | 78.5 | 2.5 | 3 | 99 | 109 |
| MM-E1W-90H | 90H | M90 | 20 | 31/2″ | 44 | 66.6 | 80 | 76.2 | 90.4 | 3.15 | 4 | 114 | 124 |
| MM-E1W-100H | 100H | M100 | 20 | 4″ | 44 | 76 | 91 | 86.1 | 101.5 | 3.15 | 4 | 123 | 138 |
