E1WB-BR Type
Type:

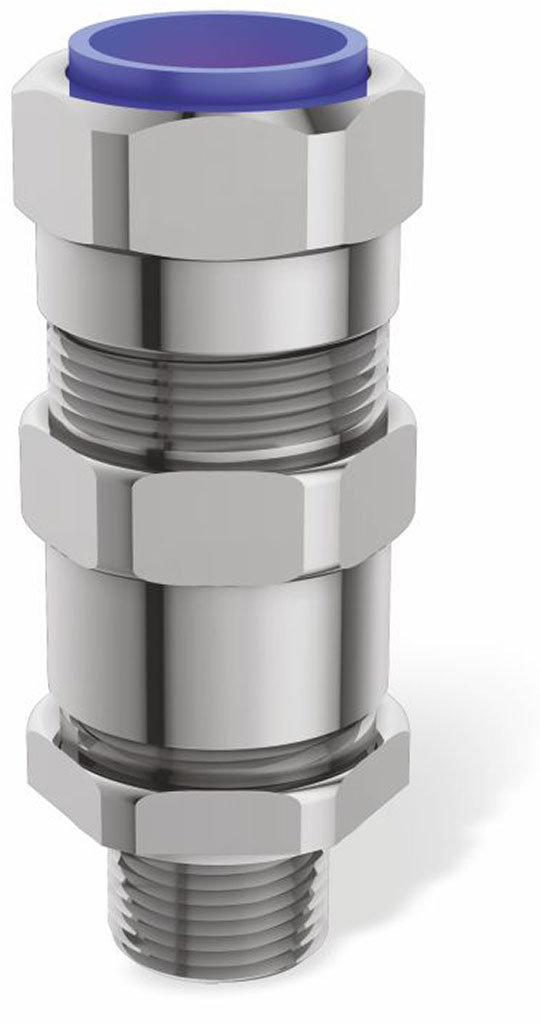

E1WB-BR Double Compression Barrier Cable Gland
CableTypes:
For all types of IEC Armoured Cable
Application:
Provides a flameproof (TypeD) Seal on the cable inner bedding. Allows mechanical cable retention and earth continuity via the cable armor termination. Reversible clamping ring and armour cone arrangement facilitates remote make off and enables the cable to be disconnected from the equipment. Stepped ring is suitable for SWA cables. Grooved ring is suitable for all other approved armoured cables.
EPL (Equipment:
Zone 1, Zone 2 Gb,Gc,Gas.
Protection Level):
Zone 21, Zone 22 Db,Dc Dust.
Option Thread:
Metric, NPT
Gland Material:
Natural Brass, Nickle Pated Brass, Stainless Steel (316L and 304)
IP Rating:
IP66, IP67 & IP68
Sealing Ring:
Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature:
Silicone Seals : EAC -40C < Ta < +100C
Finish:
Natural Brass or Nickel Plated Brass
Accessories:
PVC Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
lECEx Certificate No.:
Certification in Progress
ATEX Certificate No.:
Certification in Progress
EAC Certificate No.:
Certification in Progress
PESO Certificate No.:
Certification in Progress
Size-Chart
| CODE | CABLE GLAND SIZE | THREAD SIZE A > METRIC | THREAD SIZE A > NPT | THREAD SIZE A > OPTIONAL | THREAD LENGHT C > MMETRIC | THREAD LENGHT C > NPT | OUTER CABLE DIAMETER B > MIN | OUTER CABLE DIAMETER B > MAX | ARMOUR SIZE > ORIENTATION (1) > MIN | ARMOUR SIZE > ORIENTATION (1) > MAX | ARMOUR SIZE > ORIENTATION (2) > MIN | ARMOUR SIZE > ORIENTATION (2) > MAX | HEXAGON SIZE > A/F | HEXAGON SIZE > A/C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM-E1WB/BR-16 | 16 | M16x1.5 | 3/8 | 1/2 | 16.00 | 18.00 | 6.20 | 13.10 | 0.10 | 0.80 | 0.80 | 1.25 | 25.00 | 27.50 |
| MM-E1WB/BR-20s | 20 | M20x1.5 | 1/2 | 3/4 | 16.00 | 20.00 | 9.60 | 15.50 | 0.10 | 0.80 | 0.80 | 1.25 | 25.00 | 27.50 |
| MM-E1WB/BR-20 | 20 | M20x1.5 | 1/2 | 3/4 | 16.00 | 20.00 | 12.50 | 20.90 | 0.10 | 0.80 | 0.80 | 1.25 | 31.00 | 34.00 |
| MM-E1WB/BR-25s | 25S | M25x1.5 | 3/4 | 1 | 16.00 | 21.00 | 14.00 | 21.50 | 0.10 | 0.70 | 1.25 | 1.60 | 38.00 | 42.00 |
| MM-E1WB/BR-25 | 25 | M25x1.5 | 3/4 | 1 | 16.00 | 21.00 | 18.30 | 25.60 | 0.10 | 0.70 | 1.25 | 1.60 | 38.00 | 42.00 |
| MM-E1WB/BR-32 | 32 | M32x1.5 | 1 | 1 1/4 | 16.00 | 26.00 | 23.70 | 33.40 | 0.10 | 0.70 | 1.60 | 2.00 | 46.00 | 51.00 |
| MM-E1WB/BR-40 | 40 | M40x1.5 | 1 1/4 | 1 1/2 | 16.00 | 26.00 | 28.00 | 39.50 | 0.10 | 0.70 | 1.60 | 2.00 | 55.00 | 60.00 |
| MM-E1WB/BR-50s | 50S | M50x1.5 | 1 1/2 | 2 | 16.00 | 26.00 | 35.20 | 46.00 | 0.10 | 1.00 | 1.80 | 2.50 | 61.00 | 66.50 |
| MM-E1WB/BR-50 | 50L | M50x1.5 | 2 | 2 1/2 | 16.00 | 27.00 | 40.50 | 52.40 | 0.10 | 1.00 | 1.80 | 2.50 | 70.00 | 76.00 |
| MM-E1WB/BR-63s | 63S | M63x1.5 | 2 | 2 1/2 | 16.00 | 27.00 | 45.60 | 58.50 | 0.10 | 1.00 | 1.80 | 2.50 | 75.00 | 83.00 |
| MM-E1WB/BR-63 | 63L | M63x1.5 | 2 1/2 | 3 | 16.00 | 40.00 | 54.60 | 64.50 | 0.10 | 1.00 | 1.80 | 2.50 | 80.00 | 89.00 |
| MM-E1WB/BR-75s | 75S | M75x1.5 | 2 1/2 | 3 | 16.00 | 40.00 | 59.00 | 70.40 | 0.10 | 1.00 | 1.80 | 2.50 | 91.00 | 98.00 |
| MM-E1WB/BR-75 | 75L | M75x1.5 | 3 | 3 1/2 | 16.00 | 42.00 | 66.70 | 76.30 | 0.10 | 1.00 | 1.80 | 2.50 | 100.00 | 109.00 |
