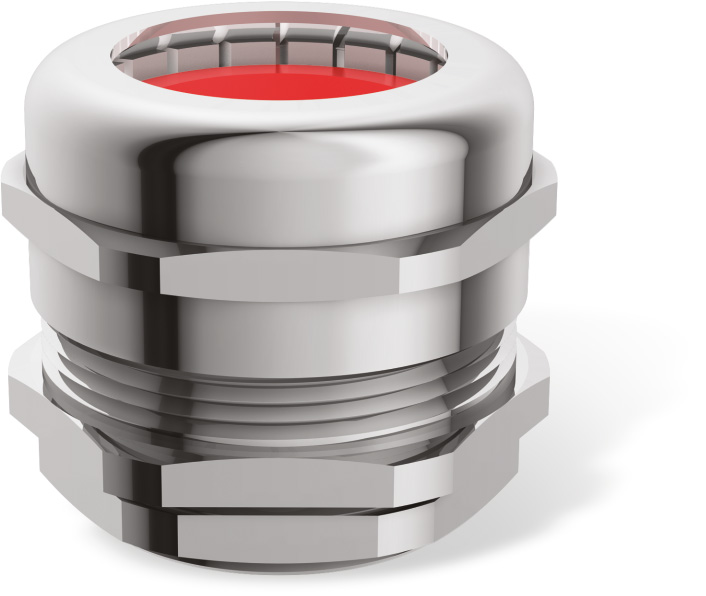

EMC Cable Gland Metric Threaded
Type:
EMC Metric Threaded Single Compression Cable Gland
Gland Size:
M12 to M63
Gland Material:
Brass (CuZn39Pb3), Stainless Steel 304, 316L
Thread:
Metric
IP Rating:
IP68
Operating Temperature:
Standard seals-20C to +90C
Cable Types:
Unarmoured
Finish:
Nickel Plated
Accessories:
Matching Accessories available like PVS Shrouds, Lock Nuts & O Ring as per requirement
Size-Chart
| CODE | CABLE SIZE > METRIC | THREAD SIZE B > METRIC | THREAD LENGTH C > SHORT | THREAD LENGTH C > LONG | ACROSS > FLAT | CABLE RANGE A > MIN | CABLE RANGE A > MAX |
|---|---|---|---|---|---|---|---|
| MM-M12-6.5E | M12 | M12 | 6 | 10 | 14.00 | 3.00 | 6.50 |
| MM-M12-8E | M12 | M12 | 6 | 10 | 17.00 | 4.00 | 8.00 |
| MM-M16-8E | M16 | M16 | 6 | 10 | 17.00 | 4.00 | 8.00 |
| MM-M16-10E | M16 | M16 | 6 | 10 | 20.00 | 6.00 | 10.00 |
| MM-M20-12E | M20 | M20 | 6.5 | 10 | 22.00 | 8.00 | 12.00 |
| MM-M20-14E | M20 | M20 | 6.5 | 10 | 24.00 | 10.00 | 14.00 |
| MM-M25-14E | M25 | M25 | 7 | 12 | 27.00 | 9.00 | 14.00 |
| MM-M25-16E | M25 | M25 | 7 | 12 | 27.00 | 11.00 | 16.00 |
| MM-M25-18E | M25 | M25 | 7 | 12 | 30.00 | 13.00 | 18.00 |
| MM-M32-20E | M32 | M32 | 8 | 12 | 40.00 | 13.00 | 20.00 |
| MM-M32-25E | M32 | M32 | 8 | 12 | 40.00 | 18.00 | 25.00 |
| MM-M40-23E | M40 | M40 | 8 | 15 | 44.00 | 15.00 | 23.00 |
| MM-M40-28E | M40 | M40 | 8 | 15 | 44.00 | 19.00 | 28.00 |
| MM-M40-32E | M40 | M40 | 8 | 15 | 50.00 | 22.00 | 32.00 |
| MM-M50-35E | M50 | M50 | 9 | 15 | 57.00 | 27.00 | 35.00 |
| MM-M50-38E | M50 | M50 | 9 | 15 | 57.00 | 32.00 | 38.00 |
| MM-M63-35E | M63 | M63 | 10 | 15 | 68.00 | 29.00 | 35.00 |
| MM-M63-44E | M63 | M63 | 10 | 15 | 68.00 | 37.00 | 44.00 |
