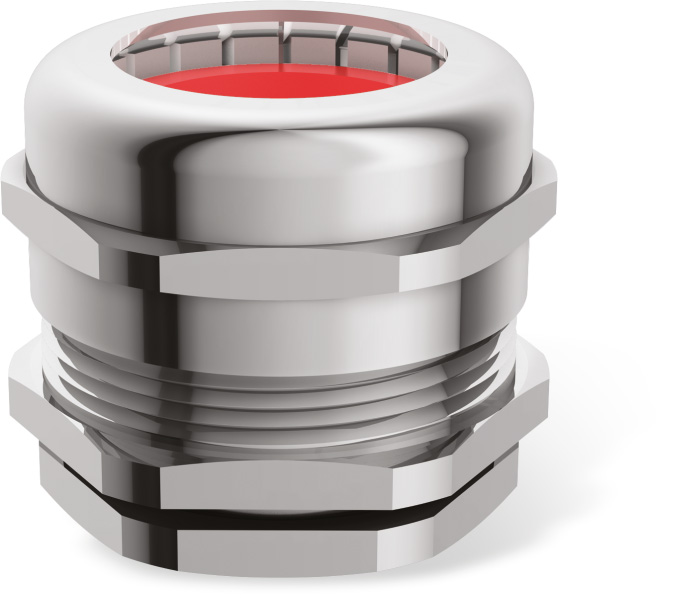

EMC Cable Glands - PG Threaded
Type:
EMC PG Threaded Single Compression Cable Gland
Gland Size:
PG 7 to PG-48
Gland Material:
Brass (CuZn39Pb3), Stainless Steel 304/316L
Thread:
PG
IP Rating:
IP68
Operating Temperature:
Standard seals-20C to +90C
Cable Types:
Unarmoured
Finish:
Natural Brass or Nickel Plate , Electroless Nickel
Accessories:
Matching Accessories available like PVS Shrouds, Lock Nuts & O Ring as per requirement
Size-Chart
| CODE | CABLE SIZE PG | THREAD SIZE B PG | THREAD LENGTH E > SHORT | THREAD LENGTH E > LONG | ACROSS > FLAT | CABLE RANGE A > MIN | CABLE RANGE A > MAX |
|---|---|---|---|---|---|---|---|
| MM-PG7-6.5E | PG 7 | PG 7 | 6 | 10 | 14.00 | 3.00 | 6.50 |
| MM-PG9-8E | PG9 | PG9 | 6 | 10 | 17.00 | 4.00 | 8.00 |
| MM-PG11-10E | PG 11 | PG 11 | 6 | 10 | 20.00 | 6.00 | 10.00 |
| MM-PG13-12E | PG 13 | PG 13 | 6.5 | 10 | 22.00 | 8.00 | 12.00 |
| MM-PG16-14E | PG 16 | PG 16 | 6.5 | 10 | 24.00 | 10.00 | 14.00 |
| MM-PG21-18E | PG 21 | PG 21 | 7 | 12 | 30.00 | 13.00 | 18.00 |
| MM-PG29-20E | PG 29 | PG 29 | 8 | 12 | 40.00 | 13.00 | 20.00 |
| MM-PG29-25E | PG 29 | PG 29 | 8 | 12 | 40.00 | 18.00 | 25.00 |
| MM-PG36-32E | PG 36 | PG 36 | 8 | 15 | 50.00 | 22.00 | 32.00 |
| MM-PG42-35E | PG42 | PG42 | 9 | 15 | 57.00 | 27.00 | 35.00 |
| MM-PG42-38E | PG42 | PG42 | 9 | 15 | 57.00 | 32.00 | 38.00 |
| MM-PG48-35E | PG48 | PG48 | 10 | 15 | 65.00 | 29.00 | 35.00 |
| MM-PG48-44E | PG48 | PG48 | 10 | 15 | 65.00 | 37.00 | 44.00 |
